102M Mini Laser Marked Water Level Indicator (80′)

102M Mini Laser Marked Water Level Indicator

Manufacturer: Solinst
Part Number: 102M
Order / Quote

The laser marked coaxial cable is mounted on a convenient small reel that is light-weight and fits easily into a mini carrying case or backpack. The accurate cable is marked each 1/100 ft. or each millimeter.

The 102M Mini Water Level Indicator is available in 80 ft. and 25 m lengths. There is the choice of the P1 or P2 Probe with segmented weights.

Reels:

The standard reel has an easy access battery drawer, an excellent brake, and convenient carrying handle. It has been ergonomically designed to be comfortable in use and stable when placed on the ground. It has an on/off sensitivity switch, light, buzzer, battery test button, and comes with a tape guide.

The mini reel is sturdy, yet very compact and easy to carry. It also has an on/off sensitivity switch, light, buzzer, and battery test button.



Length Options:

Solinst Model 102 Water Level Indicators are available on reels in the following standard lengths:

Mini Reel 80 ft. 25 m
Small Reel 100 ft. 30 m
200 ft. 60 m
300 ft. 100 m
500 ft. 150 m
750 ft. 250 m
1000 ft. 300 m


solinst water level indicators water level meters stainless steel probes measure water levels in cascading water measure water levels water level indicator reels water level indicator length options laser marked water level indicator 102 water level indicators imageThe coaxial cable has laser etched markings every 1/100 ft. or each millimeter, to provide high accuracy and reliability.

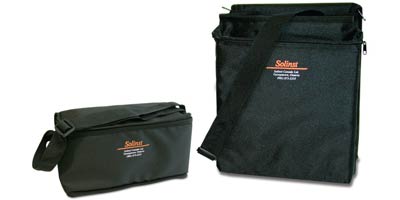

Carrying Bag: Small and mini padded nylon carrying bags are available, as optional extras. The bag design has a convenient shoulder strap, zippered front pocket, zippered top, and a grommet in the base to prevent moisture build-up. A mini bag has no pocket.

Replacement Parts: Replacement probes, cables with probe and other spare parts are available.

solinst water level indicator carrying cases carrying bag tote bags equipment bags instrument bags carrying cases tape guides tape guid datums water level indicators image



Tape Guide / Datum

solinst water level indicator carrying cases carrying bag tote bags equipment bags instrument bags carrying cases tape guides tape guid datums water level indicators imageThe tape guide can be used to protect the cable from damage on rough edges, help the probe hang straight in the well, and ensures consistent measurements. It can also provide reel support on the casing. A tape guide is provided with each standard reel.



Probes

solinst water level indicators water level meters coaxial cable water level meters water level measurement measure water levels in narrow diameter tubes accurate water level measurements narrow water level probes low cost water level indicators durable water level indicators p1 probe p2 probe 102 p2 probes 102 p1 probes laser marked water level indicators image

Model 102 Water Level Indicator Probes are designed with segmented weights for flexibility. The probe tip uses a recessed design to minimize false signals in cascading water.

P1 1/4" dia. x 1.5" long (6.4 mm x 38 mm) stainless steel with 12 weights, weighing 2.5 oz (70 g). It is ideal for accessing narrow diameters.

P2 3/8" dia. x 1.5" long (10 mm x 38 mm) brass with 10 weights, weighing 4.6 oz (130 g). The heavier probe is ideal for greater depths.
