Manufacturer: DBI
Part Number: 3400135
Order / Quote

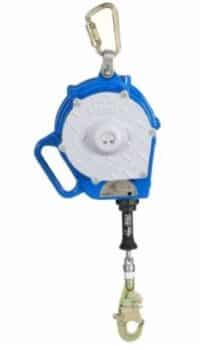

The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline (SRL) incorporates a patented concept that helps separate components, such as the motor spring and brake, from foreign elements such as grease, moisture, and dirt. The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline is IP-69K rated to provide protection against ingress of dust, high tempeatures, and high pressure water, for use in extreme environmental conditions. These lifelines are available in Overhead, Retrieval, and RSQ / Rescue SRL configurations.
When it comes to confined space and entry rescue, the 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline (SRL) is essential; it operates quickly and efficiently in the toughest environments. The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline is one of the most critical parts of a rescue system as it provides the means to retrieve an incapacitated worker to safety. The SRL’s lifeline is designed to extend as the user moves away and retracts automatically, enabling the user to move around within a recommended working area at normal speeds. Should a fall occur, the SRL’s internal centrifugal energy absorption system will activate, stopping the fall and reducing the forces imposed on the user to safe levels.
- Available in multiple configurations, lifeline lengths, and material types
- Critical SRL components sealed from environmental exposure
- Swiveling self-locking snap hook with impact indicator
- Pivoting anchorage connector loop
- Durable Construction
- Galvanized & stainless steel cable options
- Quick activating speed-sensing locking system
- Equipped with an integrated carrying handle to assist in transporting the SRL to job sites
- IP 69K ingress protection rating
- Integrated fall arrest energy dissipation system
- Emergency retrieval system available on some models
- RFID tag is embedded in polyurethane bumper
- Ergonomic cable handle equipped with 3M™ Connected Safety ID (CSID)
|
ANSI Class Level |
Class 1 |
|
Anchor Connection Type |
Carabiner |
|
Anchor Hook Material |
Stainless Steel |
|
Anchor Hook Material |
Stainless Steel |
|
Average Arrest Force (Imperial) |
900 lbf (ANSI), 900 lbf (OSHA 130 lb - 310 lb) |
|
Average Arrest Force (Metric) |
4 kN (ANSI), 4 kN (OSHA 130 lb - 310 lb) |
|
Brands |
DBI-SALA® |
|
Connected Safety ID Equipped |
Yes |
|
For Use With |
Full Body Harness & Anchor Point |
|
Harness Connection Type |
None |
|
Housing Material |
Aluminum & Stainless Steel |
|
Housing Type |
Aluminum |
|
Install Type |
Portable |
|
Leg Count |
Single-Leg |
|
Lifeline Connection Type |
Swivel Snap Hook |
|
Lifeline Hook Material |
Stainless Steel |
|
Lifeline Length (Imperial) |
50 ft |
|
Lifeline Length (Metric) |
15.24 m |
|
Lifeline Material |
Stainless Steel Cable |
|
Maximum Arrest Force (Imperial) |
1350 lbf (ANSI 130 lb - 310 lb), 1350 lbf (OSHA 130 lb - 310 lb), 1800 lbf (OSHA 311 lb - 420 lb) |
|
Maximum Arrest Force (Metric) |
6 kN (ANSI 130 lb - 310 lb), 6 kN (OSHA 130 lb - 310 lb), 8 kN (OSHA 311 lb - 420 lb) |
|
Maximum Number of Users |
One |
|
Mounting Type |
Overhead Anchor Point |
|
Product Color |
Blue |
|
Product Series |
Sealed-Blok™ |
|
Product Type |
Self Retracting Lifeline - Retrieval |
|
Recommended Application |
Blasting, Cleaning, Climbing, Inspection, Maintenance, Welding |
|
Recommended Industry |
Construction, General Industry, General Manufacturing, Industrial, Manufacturing, Military Maintenance, Repair & Operation (MRO), Mining, Oil & Gas, Wind Energy |
|
Specifications Met |
29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021 |
|
Style |
Single Leg |
|
Weight Capacity (Imperial) |
420 lb. |
|
Weight Capacity (Metric) |
190 kg |
Dimensions and Classifications
|
Overall Length (Imperial) |
50 ft |
|
Overall Length (Metric) |
15.24 m |
