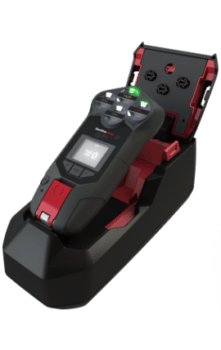

G7 Dock, Bump Test & Calibration

Manufacturer: Blackline Safety
Part Number: G7 Dock
Order / Quote

The Blackline Safety G7 Dock is the simple solution to calibrating, bump testing and charging G7 devices. One of the most affordable and compact docking stations available, G7 Dock arrives ready to perform — it requires no initial setup and can manage up to four single- or multi-gas cylinders. Docks can be used with both G7c and G7x devices, and support G7 Single-gas or Quad-gas cartridges.

Intuitive design

G7 Dock helps keep devices fully compliant according to business calibration and bump test policies. Managing calibrations, bump tests and device updates is easy — simply insert G7, and the dock will do the rest. It automatically charges the device and places it into a test-ready mode to eliminate false alerts.

G7 Dock’s simple design leverages G7’s LCD screen, menus and navigation system. Calibrations and bump tests are straightforward, performed by placing G7 into the G7 Dock and closing the lid. If a device is due for a bump or calibration, it will automatically perform the required test action when G7 Dock’s lid is closed.

G7 Dock doesn’t require an internet connection and it doesn’t need to be connected to the Blackline Safety Network to perform calibrations or bump tests. All data is communicated through connected G7 devices via cellular or satellite networks.

The connected, all-in-one solution

G7 Dock leverages the Blackline Live cloud-hosted monitoring portal to update configurations and store G7 device test data for compliance tracking and reporting.

The G7 Dock’s default configuration is a multi-gas mixture, although it also supports single-gas setups. Each G7 Dock has five ports at the back of the device — four gas inlets and one outlet for exhausting calibration gas. G7 Dock is configurable to manage up to four single-gas cylinders. Many organizations leverage the convenience of multi-gas mixtures while others employ single-gas cylinders for the improved cost of detector testing and calibration.

Blackline has designed G7 Dock to provide economical use of calibration gas, with a low flow rate.
