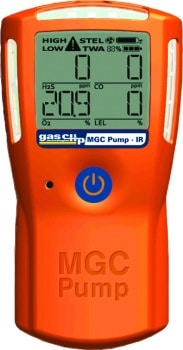

MGC Pump

Manufacturer: Gas Clip Technologies
Part Number: MCG PUMP
Order / Quote

Like our MGC, the MGC Pump uses low-power photometrictechnology to detect combustible gases (LEL) rather than ageold pellistor technology.  The MGC Pump uses an IR source which conserves power and helps the battery last and last.

The MGC Pump is also designed for comfort.  The reduced, sloping shape of the holding area at the bottom of the instrument makes the MGC Pump a comfortable fit in the hands of your workers. It is fully submersible and simple to operate.  The MGC Pump offers a one button design and the largest LCD screen in the industry so it’s easy to read.

Other multi gas detectors require calibration anywhere from 1 to 3 months.  The MGC Pump can go 6 months without being calibrated. This is an added benefit PG IR sensing technology because IR is immune to pellistor sensor poisons such as silicone or H2S.

SIZE:  5.7 x 3.0 x 1.5 in. (147 x 78 x 38.3 mm.) WEIGHT:  12.4 oz. (352g) TEMPERATURE:  -4˚ to +122˚F (-20˚ to +50˚C) HUMIDITY:  5% to 100% RH (non-condensing) BATTERY LIFE:  5 days continuous

CHARGE TIME:  4 - 6 hours

ALARMS:  Visual, Vibrating, Audible (minimum 95 dB) Low, High, STEL, TWA, & OL (Over Limit), Pump LEDs:  4 red alarm bar LEDs, Yellow backlight (activated on button press), Red backlight (activated on alarm condition),  Yellow Maintenance Notification LED. DISPLAY:  Alphanumeric Liquid Crystal Display (LCD) LOGS:  25 Bump tests, 25 Events, 25 Calibrations, Continuous 1 second data logging (> 2 month typical capacity).

TESTS:  Full function self-test upon activation, Sensors, battery and circuitry conditions. INGRESS PROTECTION:  IP 67

GAS INLET:  1/8" barbed fitting

PUMP DRAW:  Sample from up to 75' (23m)

WARRANTY:  Full 2 years GASES:  H2S:  0 - 100 PPM (0.1 PPM increments), CO:  0 - 500 PPM (1 PPM increments), Combustible gas:  0 - 100% LEL (0.1% LEL increments), O2:  0 - 30% vol. (0.1% vol. increments)

SENSOR TYPE:  H2S, CO, O2: Single plug-in electrochemical cell.  Combustible: Plug-in infrared (IR) or pellistor.

TWA/STEL intervals,

Languages (6), Pump test, Self-Test lock, Auto-zero on start up, Bump test interval, Low/High alarm, Maintenance notification, TWA method, Sensor enable/disable, SAFE display, Dock lock, Calibration gas, Calibration interval, TWA/STEL alarm.
